Bootstrap a Node 3 and Deploy Apache Web Server
In this article,we will see Bootstrap a Node 2 and Deploy Apache Web Server.
Implementation Steps
Bootstrap a Node 3
- Check Availability Zone of your workstation.
- Create a Node “Chef-Node-1” by launching instance.
- Open your workstation Linux terminal through putty.
- Switch to root user.
- Go to chef-repo.
- Run bootstrap command to bootstrap a node 2.
- Verify bootstrap nodes.
Deploy an Apache Web Server
- Attach recipe “ktexperts-apache-recipe’rb” to node “ktexperts-node 2”.
- Verify recipe in run list.
- Verify the content of node 2 “Chef-Node-2”.
- Modify recipe “ktexperts-apache-recipe.rb”.
- Upload cookbook to chef server.
- Verify the content of node 1 “Chef-Node-1”.
Bootstrap a Node 3

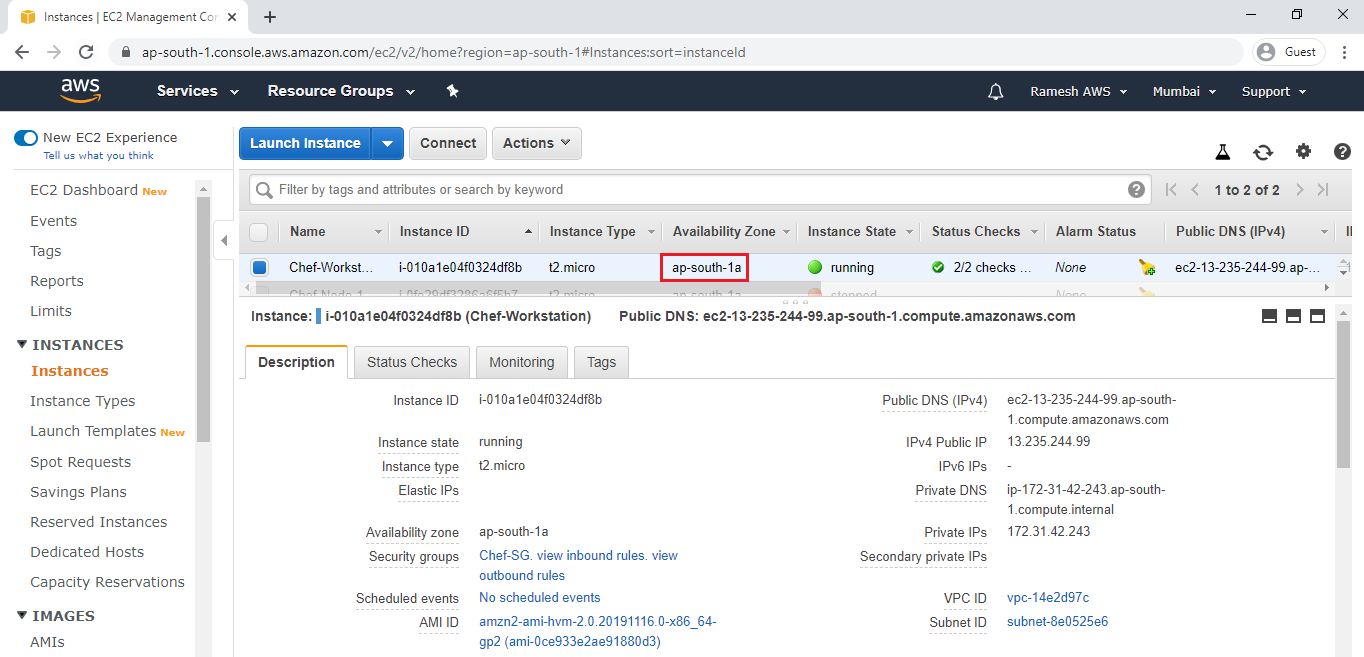

Check Availability Zone of your workstation
we can see the Availability Zone “ap-south-1a” of your workstation.
Note
Workstation is in ap-south-1a AZ.
we create a node in the same Availability Zone “ap-south-1a”.
we need to open SSH and HTTP ports.
we need to specify some commands in the userdata while launching instance.
Create a Node “Chef-Node-3”
Launch Linux EC2 Instance
Check below link to Launch Linux EC2 Instance.
We can see the node “Chef-Node-3” which was created earlier.
Open your workstation Linux terminal through putty
|
1 2 3 4 5 6 7 8 9 |
Using username "ec2-user". Authenticating with public key "imported-openssh-key" Last login: Fri Dec 27 09:02:29 2019 from 124.123.103.5 __| __|_ ) _| ( / Amazon Linux 2 AMI ___|\___|___| https://aws.amazon.com/amazon-linux-2/ |
Switch to root user
[ec2-user@ip-172-31-42-243 ~]$ sudo su [root@ip-172-31-42-243 ec2-user]#
Go to chef-repo
[root@ip-172-31-42-243 ec2-user]# cd chef-repo/ [root@ip-172-31-42-243 chef-repo]#
Run bootstrap command to bootstrap a node
we need specify private IP key file of chef-node-1 in bootstrap command.
Copy private IP of chef-node-3
Specify username,private IP(chef-node-2) and pem key “chef.pem” (chef-node-2) in the bootstrap command.
Note
Two actions will be done while bootstrapping.
Adding node to chef server.
Installing chef package.
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 |
[root@ip-172-31-42-243 chef-repo]# knife bootstrap 172.31.32.223 --ssh-user ec2-user --sudo -i chef.pem -N ktexperts-node3 --ssh-user: This flag is deprecated. Use -U/--connection-user instead. Connecting to 172.31.32.223 The authenticity of host '172.31.32.223 ()' can't be established. fingerprint is SHA256:TRLPeVLqc6N2SY2Z+mvJtnHPPN9eJnAGHge/ANESUKo. Are you sure you want to continue connecting ? (Y/N) Y Connecting to 172.31.32.223 Creating new client for ktexperts-node3 Creating new node for ktexperts-node3 Bootstrapping 172.31.32.223 [172.31.32.223] -----> Installing Chef Omnibus (stable/15) downloading https://omnitruck.chef.io/chef/install.sh to file /tmp/install.sh.12429/install.sh trying wget... [172.31.32.223] el 7 x86_64 Getting information for chef stable 15 for el... downloading https://omnitruck.chef.io/stable/chef/metadata?v=15&p=el&pv=7&m=x86_64 to file /tmp/install.sh.12434/metadata.txt [172.31.32.223] trying wget... [172.31.32.223] sha1 27c8caeb7fcbab3642d3a2c320d2f880a6cf8541 sha256 9cb48fed74779b261a03c34178e375bbbf27860db3641ef5b392f7b1e439414e url https://packages.chef.io/files/stable/chef/15.6.10/el/7/chef-15.6.10-1.el7.x86_64.rpm version 15.6.10 [172.31.32.223] [172.31.32.223] downloaded metadata file looks valid... [172.31.32.223] downloading https://packages.chef.io/files/stable/chef/15.6.10/el/7/chef-15.6.10-1.el7.x86_64.rpm to file /tmp/install.sh.12434/chef-15.6.10-1.el7.x86_64.rpm [172.31.32.223] trying wget... [172.31.32.223] Comparing checksum with sha256sum... [172.31.32.223] Installing chef 15 installing with rpm... [172.31.32.223] warning: [172.31.32.223] /tmp/install.sh.12434/chef-15.6.10-1.el7.x86_64.rpm: Header V4 DSA/SHA1 Signature, key ID 83ef826a: NOKEY [172.31.32.223] Preparing... [172.31.32.223] ######################################## [172.31.32.223] [172.31.32.223] Updating / installing... chef-15.6.10-1.el7 [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] # [172.31.32.223] [172.31.32.223] Thank you for installing Chef Infra Client! For help getting started visit https://learn.chef.io [172.31.32.223] Starting the first Chef Infra Client Client run... [172.31.32.223] +---------------------------------------------+ ✔ 2 product licenses accepted. +---------------------------------------------+ [172.31.32.223] Starting Chef Infra Client, version 15.6.10 [172.31.32.223] [172.31.32.223] resolving cookbooks for run list: [] [172.31.32.223] [172.31.32.223] Synchronizing Cookbooks: [172.31.32.223] [172.31.32.223] Installing Cookbook Gems: Compiling Cookbooks... [2019-12-31T12:25:43+00:00] WARN: Node ktexperts-node3 has an empty run list. [172.31.32.223] Converging 0 resources [172.31.32.223] [172.31.32.223] [172.31.32.223] [172.31.32.223] Running handlers: [172.31.32.223] [172.31.32.223] Running handlers complete [172.31.32.223] Chef Infra Client finished, 0/0 resources updated in 06 seconds [172.31.32.223] |
Verify bootstrap nodes
To the bootstrap nodes
The ktexperts-note 3 has added to chef server successfully.
|
1 2 3 4 |
[root@ip-172-31-42-243 chef-repo]# knife node list ktexperts-node1 ktexperts-node2 ktexperts-node3 |
Deploy an Apache Web Server
We have already uploaded the recipe to chef server.
Attatch recipe “ktexperts-apache-recipe’rb” to node “ktexperts-node 3”
|
1 2 3 |
[root@ip-172-31-42-243 chef-repo]# knife node run_list set ktexperts-node3 "recipe[ktexperts-apache-cookbook::ktexperts-apache-recipe]" ktexperts-node3: run_list: recipe[ktexperts-apache-cookbook::ktexperts-apache-recipe] |
Verify recipe in run list
|
1 2 3 4 5 6 7 8 9 10 |
[root@ip-172-31-42-243 chef-repo]# knife node show ktexperts-node3 Node Name: ktexperts-node3 Environment: _default FQDN: ip-172-31-32-223.ap-south-1.compute.internal IP: 13.232.161.203 Run List: recipe[ktexperts-apache-cookbook::ktexperts-apache-recipe] Roles: Recipes: Platform: amazon 2 Tags: |
Verify the content of node 1 “Chef-Node-3”
Copy the IPV4 Public IP of node 1″Chef-Node-3″
Search IPV4 Public IP in browser
We can able to see the content of node 3 “Chef-Node-3”
Modify recipe “ktexperts-apache-recipe.rb”
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 |
[root@ip-172-31-42-243 chef-repo]# vi cookbooks/ktexperts-apache-cookbook/recipes/ktexperts-apache-recipe.rb package 'httpd' do action :install end file '/var/www/html/index.html' do content "wwww.ktexperts.com && Knowledge sharing platform && Help to share Knowledge && Write article on different technologies" action :create end service 'httpd' do action [ :enable, :start ] end |
Note
:wq! — to quit.
Upload cookbook to chef server
we can’t upload individual recipes so,we can upload cookbook that the recipe present inside the cookbook itself.
|
1 2 3 |
[root@ip-172-31-42-243 chef-repo]# knife cookbook upload ktexperts-apache-cookbook Uploading ktexperts-apache-cookbook [0.1.0] Uploaded 1 cookbook. |
Verify the content of node 3 “Chef-Node-3”
Refresh IPV4 Public IP the browser
we can see the content has been modified successfully.
