Run SQL as JENKINS_PIPELINE_job by SQL plus script runner plugin.
Running the SQL script – As Scripted pipeline job from Jenkins file in GIT repo
Note: the SQL script placed in the same location as Jenkins file
|
1 2 3 4 5 6 7 8 9 10 11 12 |
//Pipeline code (scripted pipe) in Jenkins file in GIT repo // node ('master') { stage('Code_checkout') { git url: 'https://github.com/mshan0181/java-sample-code.git' } stage('SQL_script_runner') { echo 'SQLPlusRunner running user define script for shandba@client_access' step([$class: 'SQLPlusRunnerBuilder',credentialsId:'shandb-priv-id', instance:'client_access',scriptType:'userDefined', script: '',scriptContent: 'select * from v$version']) step([$class: 'SQLPlusRunnerBuilder',credentialsId:'shandb-priv-id', instance:'client_access',scriptType:'userDefined', script: '',scriptContent: 'select name from v$database']) step([$class: 'SQLPlusRunnerBuilder',credentialsId:'shandb-priv-id', instance:'client_access',scriptType:'file', script: 'switchover_status.sql',scriptContent: '']) } } |
👉 Create the (above code) scripted pipeline in Jenkins file in GIT repo.
👉 SQL file also placed in the same GIT repo as Jenkins file.
👉 Configure the pipeline from SCM (GIT repo) as Jenkins file.
👉 Jenkins file location is provided as part of the configuration:
👉 Build the job.
👉 Check the console output:
👉 Console output: continued
Running the SQL script – As Declarative pipeline job from Jenkins file in GIT repo
Note: The SQL script placed in the different Repo-location and different BRANCH and not same as Jenkins file
▪️ Create the Jenkins file with Declarative pipeline code.
▪️ The pipeline code has the credential ID step—in GIT checkout code stage.
▪️ The GitHub token (Token) has to be created and has to be used for creation of Credential ID in the Jenkins
▪️ The GitHub token will be used as PASSWORD (for username/password kind) to create the Credential ID.
Note: GitHub token creation is not covered in this document.
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 |
//Pipeline code (Declarative pipe) in Jenkins file in GIT repo // pipeline { agent { label 'master' } stages { stage('Git Checkout') { steps { script { git branch: 'main', credentialsId: 'github_user_credential', url: 'https://github.com/mshan0181/SQL_files.git' } } } stage('SQL-script-runner') { steps { step([$class: 'SQLPlusRunnerBuilder',credentialsId:'shandb-priv-id', instance:'client_access',scriptType:'userDefined', script: '',scriptContent: 'select * from v$version']) step([$class: 'SQLPlusRunnerBuilder',credentialsId:'shandb-priv-id', instance:'client_access',scriptType:'userDefined', script: '',scriptContent: 'select name from v$database']) step([$class: 'SQLPlusRunnerBuilder',credentialsId:'shandb-priv-id', instance:'client_access',scriptType:'file', script: 'tablespace_usage_listing.sql',scriptContent: '']) } } } } |
👉 Create the Pipeline script (above code) in Jenkins file in GitHub REPO location:
👉 SQL script file stored in different location and different Branch (master)
👉 Build the job:
👉 Check the console output:
👉 Console output: continued
👉 Console output: continued
Jenkins job status showing success –even SQL failed with error inside SQL plus.
▪️ The Jenkins job show the job status as SUCCESS even when the SQL error is thrown.
▪️ We need to make Jenkins job to FAIL if there is any SQL error message is thrown inside SQLPLUS runner.
▪️ We need to add a piece of code at the start of the SQL file
WHENEVER SQLERROR EXIT SQL.SQLCODE
▪️ Start the fresh job after adding this code in the start of the SQL file.
▪️ The Jenkins job will FAIL caused due to SQL error.
-
▪️ By this we can avoid the FALSE success message from the Jenkins console.
Example code:
|
1 |
WHENEVER SQLERROR EXIT SQL.SQLCODEUPDATE EMP_DETAILS_VIEW SET SALARY = SALARY*1.1; |
👉 Configure the SQL plus Runner job – for correct SQL with syntax issue
👉Build the SQL Plus runner job.

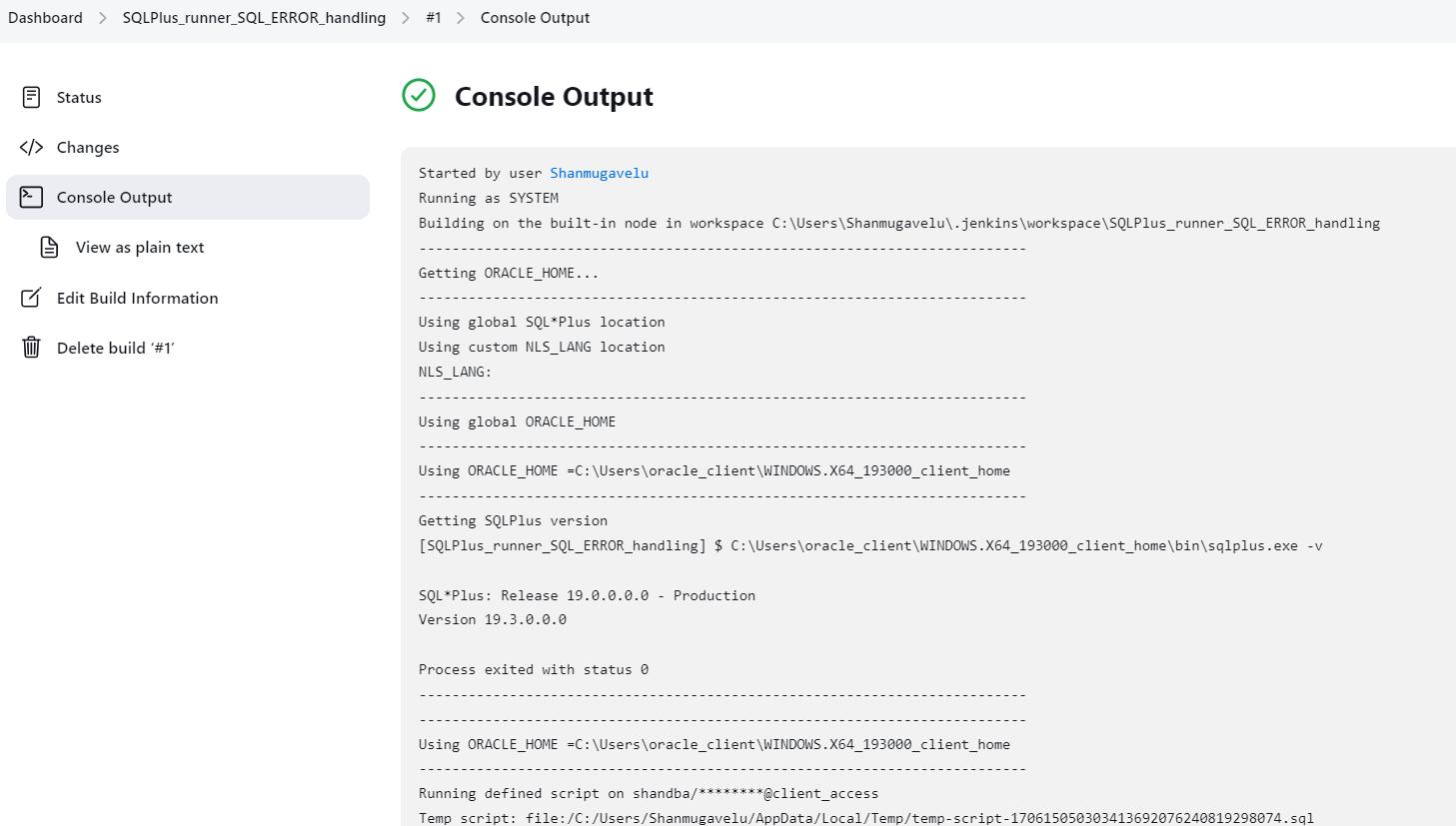

👉Console output of job
👉Console output of job: continued
Author : Venkat Vinod Kumar Siram
LinkedIn : https://www.linkedin.com/in/vinodsiram/
Assisted by Shanmugavel
