Run SQL as JENKINS_UI_job by SQLplus script runner plugin

Run SQL as JENKINS_UI_job by SQLplus script runner plugin

To perform SQL operations connecting to Remote Oracle DB without SSH connection.

This article uses the Jenkins master node to run/execute the SQL.

▪️ SQL plus Script Runner plugin is required to run the SQL code from Jenkins job.

▪️ The Oracle Client software location (ORACLE_HOME) and SQL Plus exe-file location is earlier configured with SQL Plus Script runner in Jenkins tool to run the SQL.

▪️ The SQL/Query will access/fetch the database on Remote Oracle DB Server

▪️ SQL code is executed directly from Master node (using TNS entry of the remote DB)

NOTE:

▪️ We don’t require the SSH to connect/access the remote DB.

▪️ We will use only the TNS entry to connect/access the remote DB.

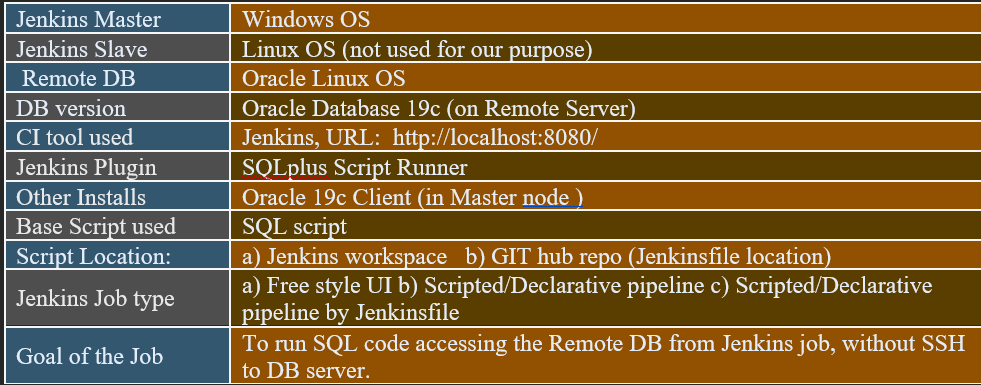

System Configuration details:

IMPORTANT NOTE:

▪️ The SQL code can also be executed from SLAVE node as well, provided the Oracle Client software to be installed in slave machine.

▪️ In this article we have used Master node to execute the SQL code.

Tools required:

▪️ Oracle client software (in Master node)

▪️ SQL Runner plugin (in Jenkins)

Install Oracle Database client (Install Steps not covered)

Configure the TNS connection in Oracle Client home:

Test connection to Remote Oracle Database (Using Client):

SQL plus Script Runner:

▪️ This plugin enables you run Oracle SQL*Plus scripts on your Jenkins jobs (user defined scripts or a script inside a workspace).

▪️ Oracle SQL*Plus installation requires Java version 11.

Java version Dependency Chart: for Plugin versions

plugin version	Java version	description
3.x	11	Java 11 +
2.x	8	For mainly Jenkins 2.x, credentials plugins implemented and pipeline support.
1.x	7	– For Jenkins 1.x













SQLPLUS runner à Installation

Configure SQL plus Script Runner (GLOBAL default settings for any job, where the path is not mentioned)

▪️ The Jenkins job will pick this GLOBAL default settings for SQL plus exe file and the ORACLE_HOME location for client.

▪️ The Jenkins job can also have customized settings/location for SQL plus exe file and ORACLE_HOME location.

▪️ In such case the customized setting will override the GLOBAL settings during the job execution.

GLOBAL setting for any jobs – SQL Plus Runner:

Running the SQL script – as freestyle job from Jenkins UI A) Script type: File script

👉 Configuration of Jenkins job: where to run.

👉 Configuration of Source code management:

👉 Configuration of SQL plus script Runner: ORACLE_HOME and SQL plus exe file location

👉 Configure – continue.

👉 SQL file Script placed at Workspace location in Jenkins server:

👉 Build the job:

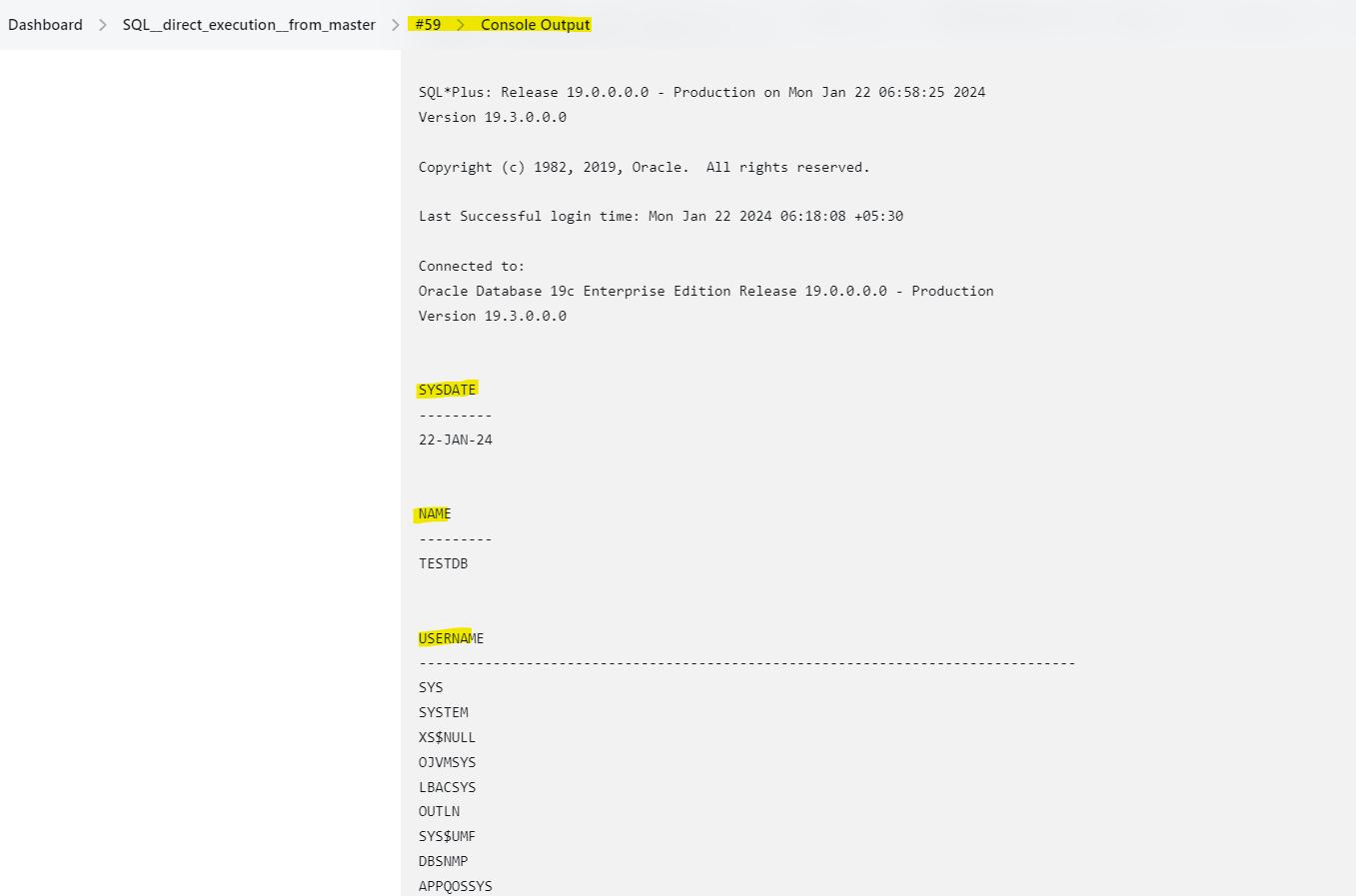

👉 Console output of the Job

👉 Console output: continued

B) Script type: User defined script

👉 Configuration of SQL Script runner: User defined script (Script type)

👉 Console output of job: user defined script job

Running the SQL script – as pipeline job from UI

Note: Here we have used the scripted pipeline in UI

👉 Configure the job:

👉 Place the SQL script file in the Workspace location/jobname:

//Pipeline code (scripted pipe) for UI //



👉 Configure the (above code) pipeline script in UI (provide the SQL runner step in the code):

👉 Run the job and check the console output.

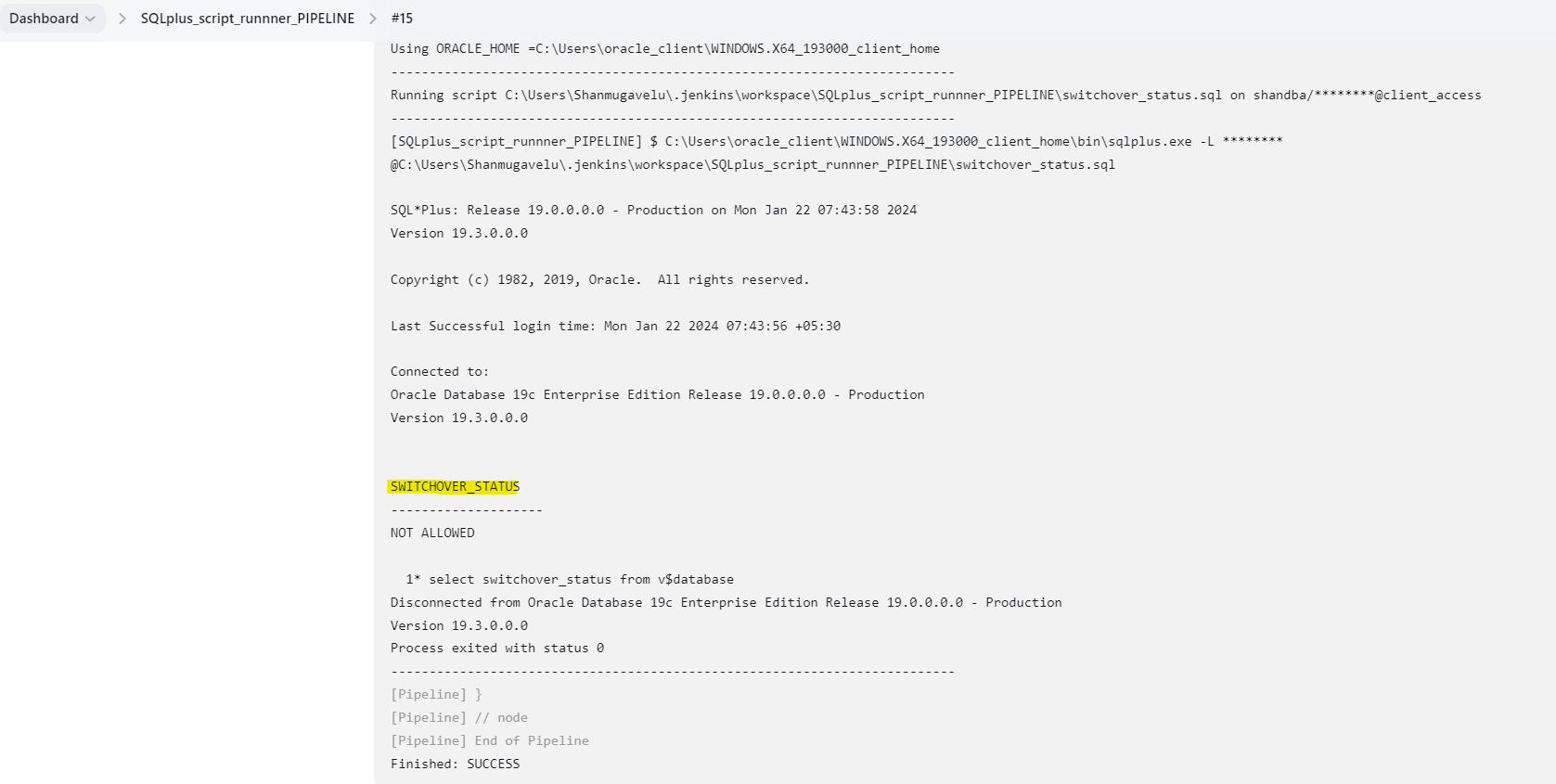

👉 Console output: continued



Author    : Venkat Vinod Kumar Siram

LinkedIn : https://www.linkedin.com/in/vinodsiram/

Assisted by Shanmugavel
